Pump and motor set, from STEP file to photoreal.

A base-mounted pump set: flanged pump, lantern and coupling, electric motor and a steel base frame. The source was a STEP assembly. We prepared it, built the materials and delivered a set that runs from full-product hero to the coupling at macro scale.

Quote a project like this View all 7 renders

Equipment: Base-mounted pump and motor set
Sector: Pumps and fluid handling
Built from: STEP CAD
Delivered: 7 stills, 4:3
Views: Hero, details, exploded
Used for: Catalogue, web, trade show

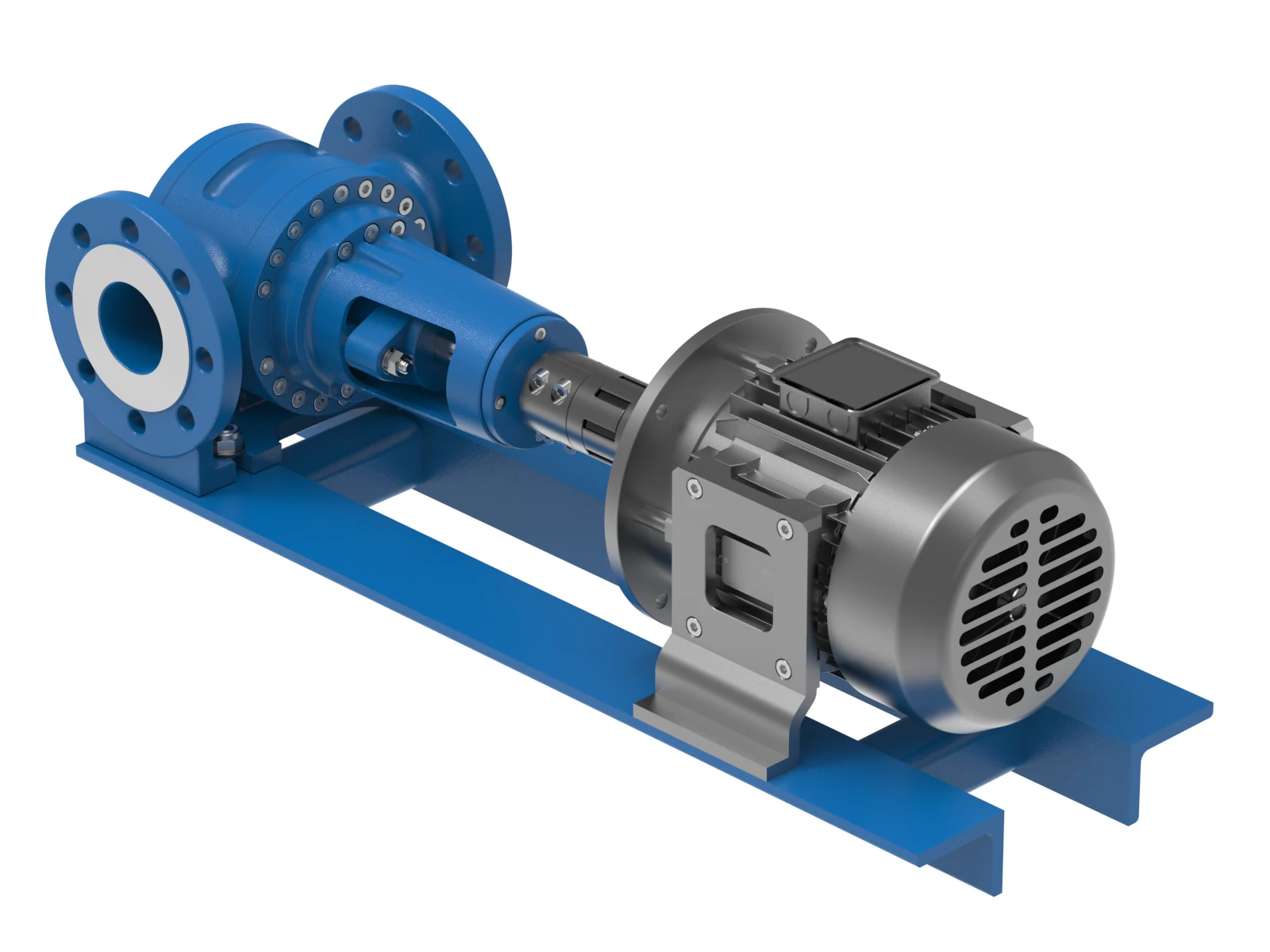

Base-mounted pump and motor set 3D rendering, Hero view of the complete pump set — Hero view of the complete pump set

The render set.

7 stills from one prepared model, delivered at print resolution. Select any image to view it full size.

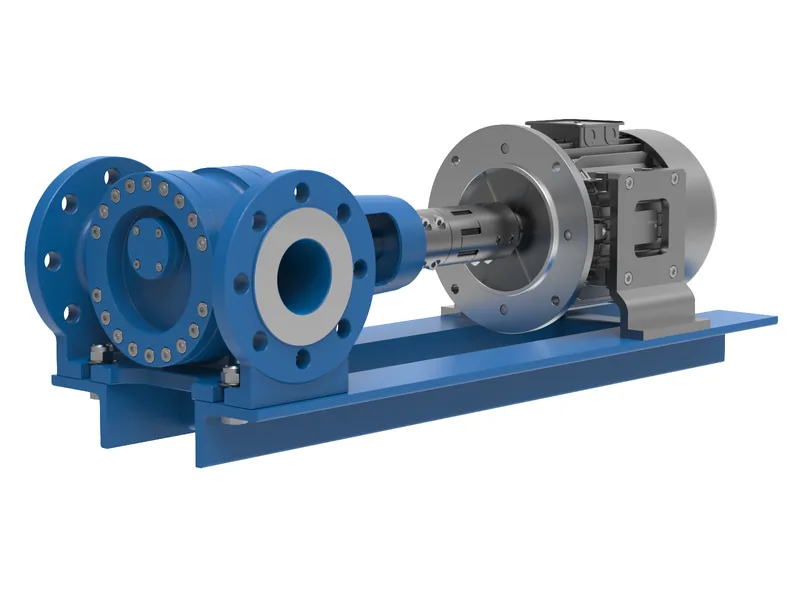

Base-mounted pump and motor set 3D rendering, Pump flange end and base frame — Pump flange end and base frame

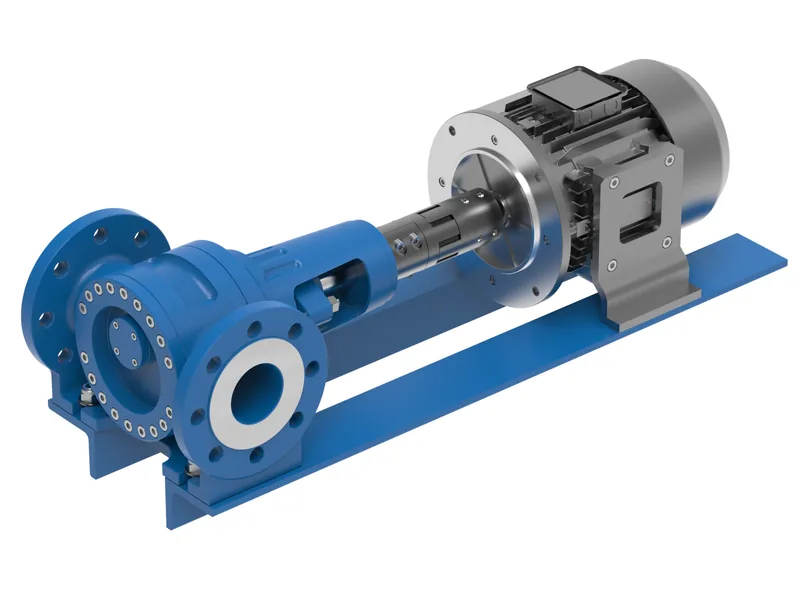

Base-mounted pump and motor set 3D rendering, Lantern opened to show the coupling — Lantern opened to show the coupling

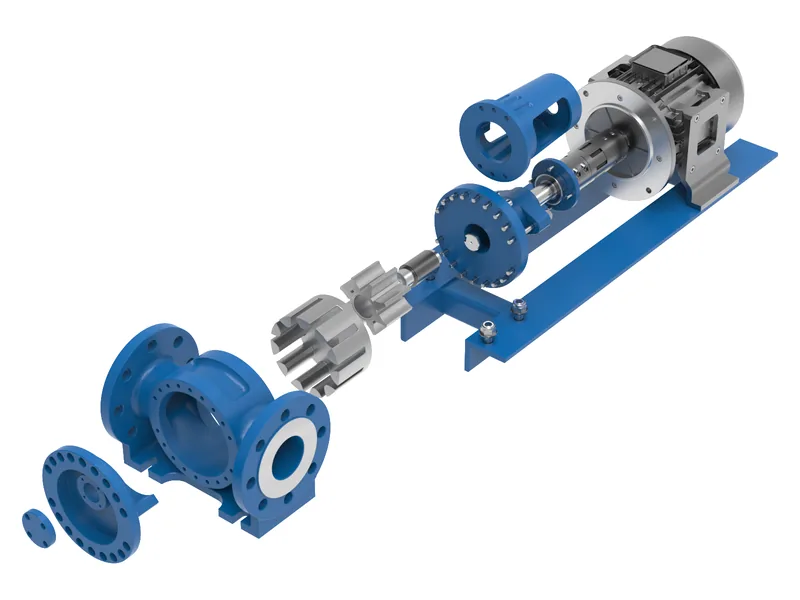

Base-mounted pump and motor set 3D rendering, Exploded view of pump, coupling and lantern — Exploded view of pump, coupling and lantern

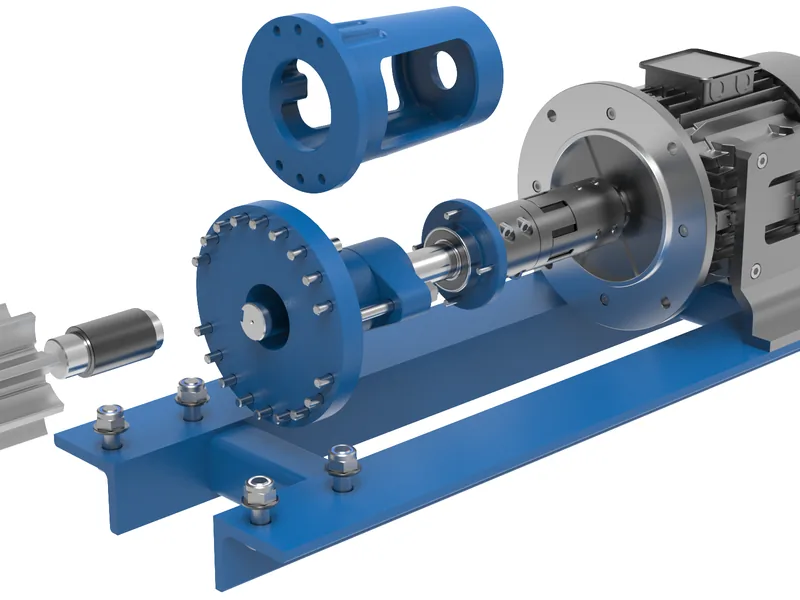

Base-mounted pump and motor set 3D rendering, Coupling components separated on the base — Coupling components separated on the base

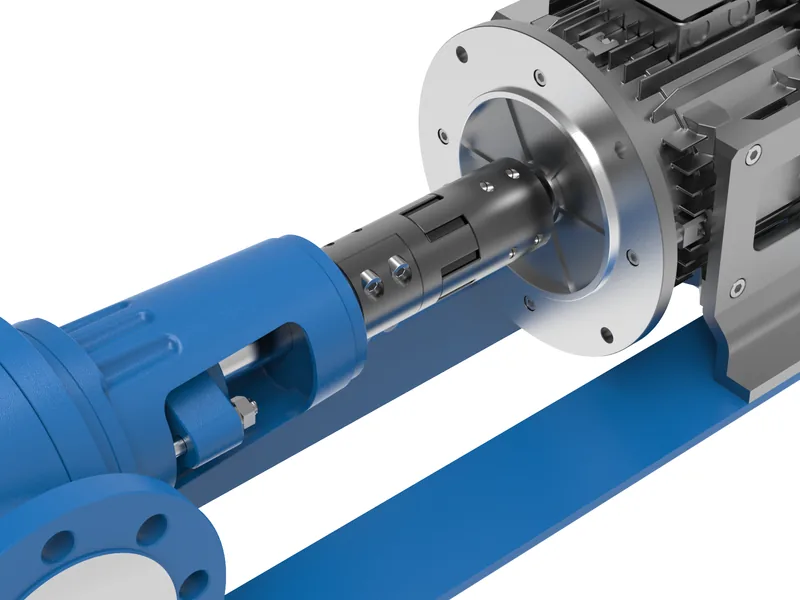

Base-mounted pump and motor set 3D rendering, Macro of shaft, coupling and motor flange — Macro of shaft, coupling and motor flange

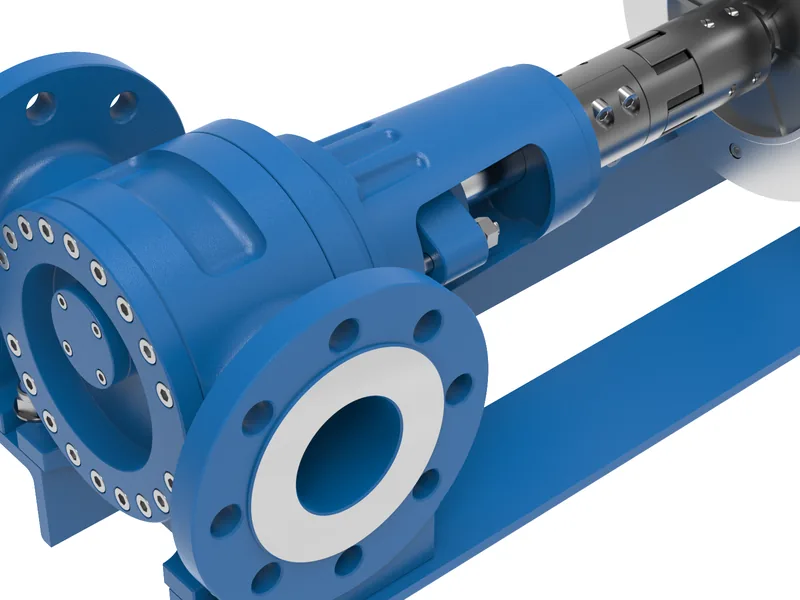

Base-mounted pump and motor set 3D rendering, Close-up of the pump flange and casing — Close-up of the pump flange and casing

What the visuals had to do.

From STEP to catalogueTurn manufacturing CAD into images the marketing team can use the same week.
Show what connectsCoupling, lantern and alignment are where pump sets differ. They needed their own views.
One set, many usesHero images for the website and booth, details and an exploded view for technical sales.

How we built it.

The STEP file was checked, repaired where surfaces were open, and simplified inside the motor and pump where nothing is visible.

Blue painted cast iron, bright machined faces, a ribbed aluminium motor housing and a steel base frame each got their own material, lit on white so the set drops straight into a catalogue page.

An exploded view along the drive line shows the pump, coupling halves and lantern in order, ready to become an assembly animation.

Where these visuals work

Product catalogues and price lists
E-commerce and distributor portals
Trade show panels
Technical sales presentations

Services behind this project.

One prepared model feeds every service below, so each further asset costs less than the first.

Equipment and component renderingStudio renders of components, spares and product ranges.Exploded views and illustrationExploded, sectioned and x-ray views for catalogues and manuals.CAD to marketing assetsEngineering data turned into a full marketing asset set.Assembly and installation animationStep-by-step assembly, installation and service films.

What a project like this costs.

Fixed prices, CAD preparation included, full commercial usage rights on payment. Complex machines are scoped individually. Full pricing

Single component render

$590

One product or component, studio lit.

Exploded view set

$1,390

Three exploded or sectioned views of one assembly.

Catalogue batch

From $340 per SKU

Ten or more variants from one prepared model.

Questions.

Can you work from STEP files only?

Yes. STEP is our preferred format. We check it on arrival and tell you before quoting if anything needs rebuilding.

Can you show different motor sizes or colours?

Yes. Once the set is prepared, variants share the scene, and extra colours or options cost $240 each.
