HVAC compressor rack, rendered from CAD.
An air-cooled refrigeration rack with a bank of semi-hermetic compressors under a V-coil condenser deck. Too large to photograph cleanly on a factory floor, and most of what an engineer wants to inspect sits behind pipework. The CAD already held all of it.
- Equipment
- Air-cooled compressor rack
- Sector
- HVAC and refrigeration
- Built from
- Engineering CAD assembly
- Delivered
- 6 stills, 4:3, print and web
- Views
- Hero, high angle, rear, details
- Used for
- Catalogue, tender, web, booth
The render set.
6 stills from one prepared model, delivered at print resolution. Select any image to view it full size.
What the visuals had to do.
- Scale and layoutShow the whole skid, its frame and its service access in one readable image, the way a consultant or contractor needs to see it.

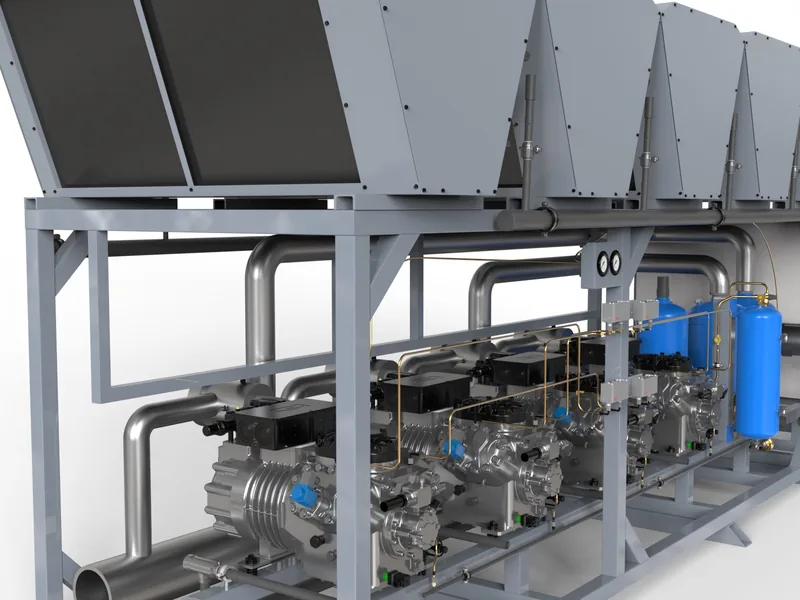

- The compressor bankKeep valves, pipe runs, receivers and oil management legible at close range, because this is what the buyer is paying for.

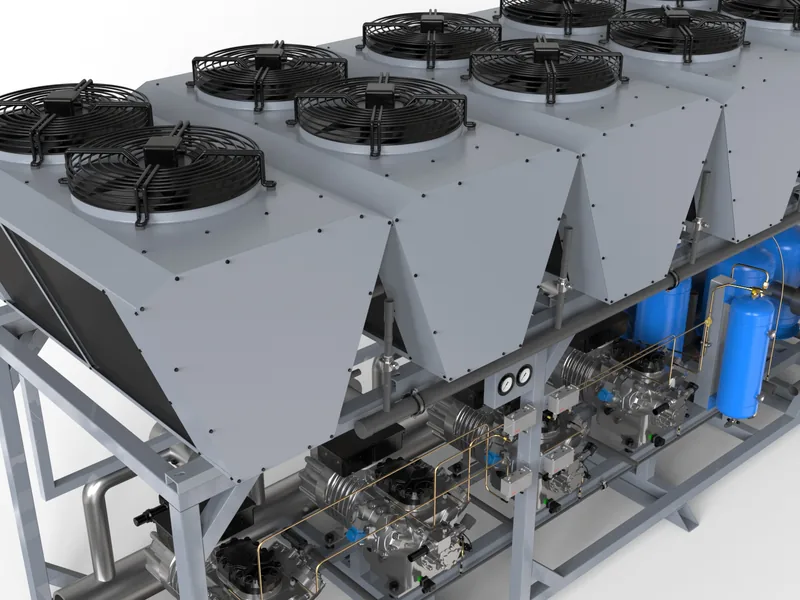

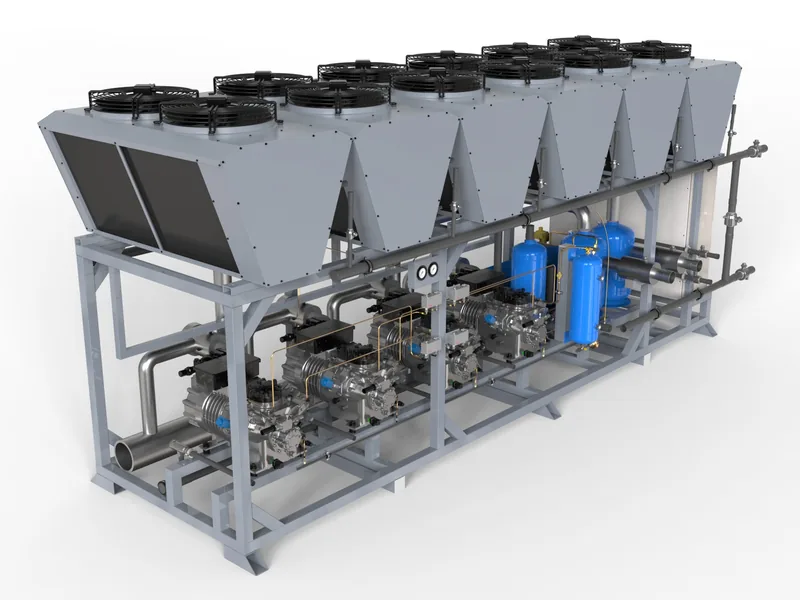

- The condenser deckShow fan count and V-coil geometry from above, which no ground-level photograph ever captures.
How we built it.
Racks like this arrive with thousands of parts, including fasteners and internals nobody will ever see. We simplified what is hidden and kept every visible surface exactly as engineered, so the rack is dimensionally the product, not an illustration of it.

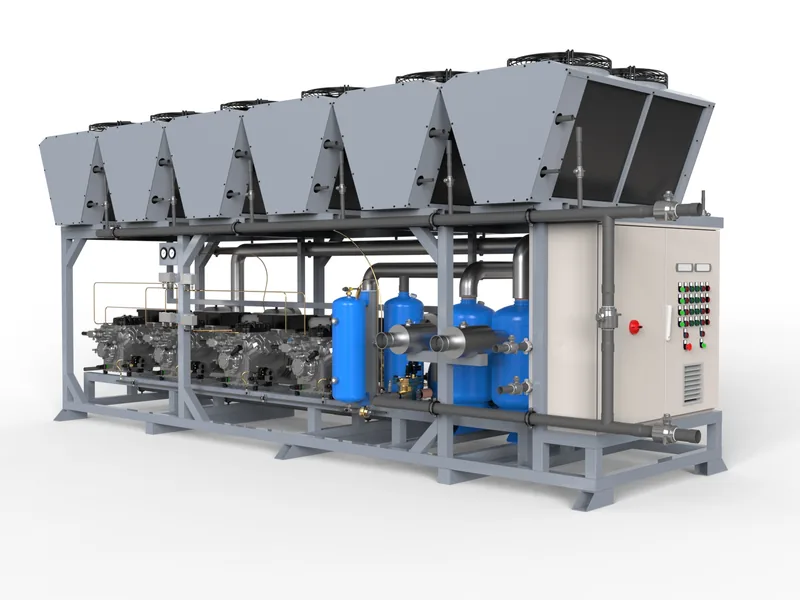

Materials were built for each surface family: galvanised and powder-coated steel, copper and insulated lines, painted pressure vessels, fan guards and panel enclosures. A soft studio key on a white sweep keeps the rack readable in a brochure layout and on a product page.

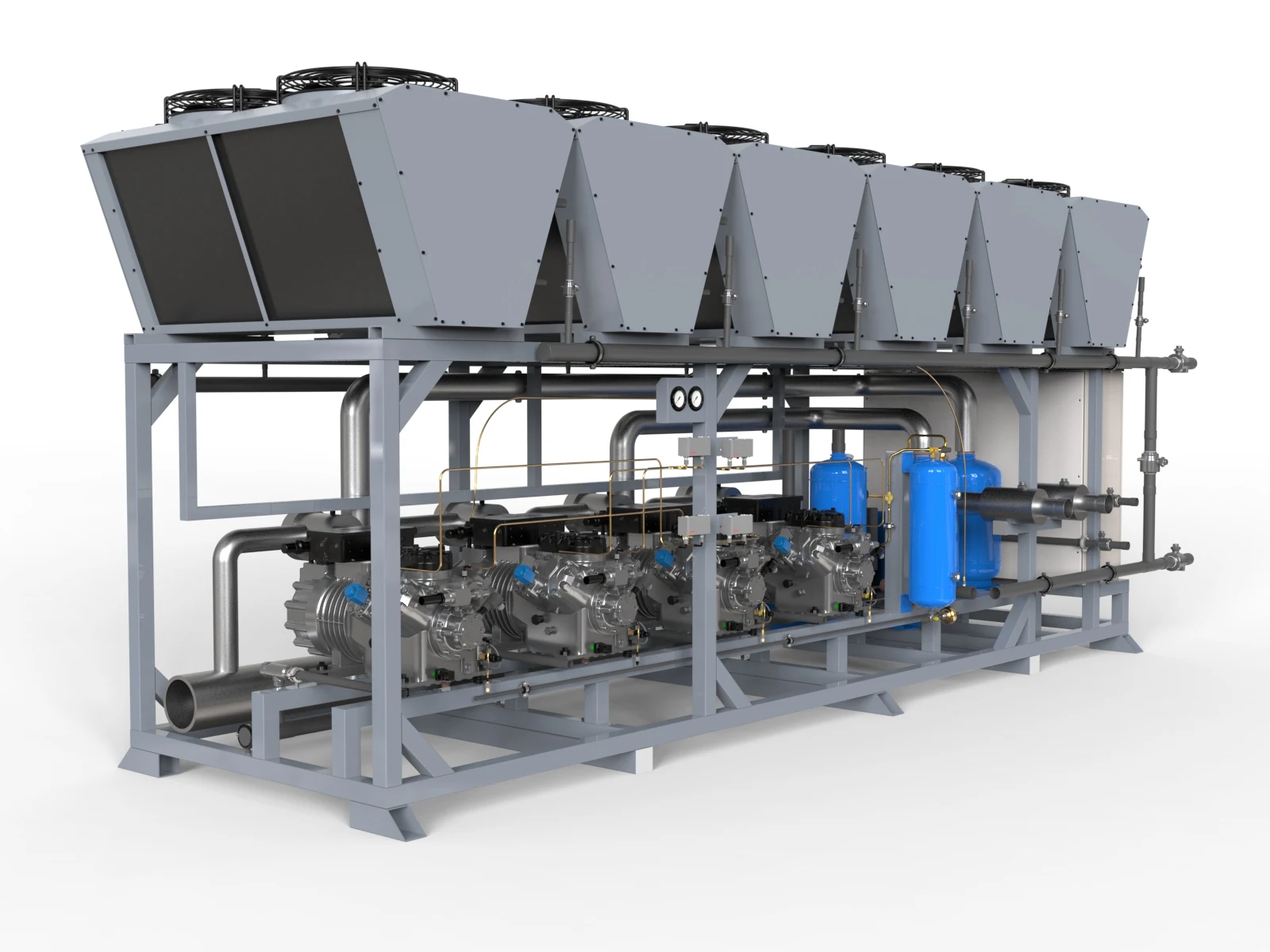

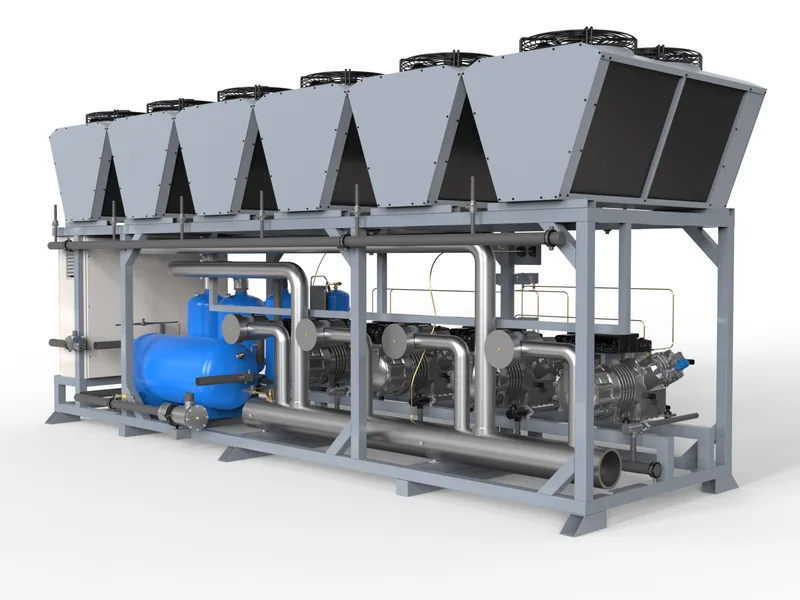

The camera set was planned as a system: one hero three-quarter, one high angle for the condenser, one rear view, and three close-ups. The same scene is ready for new capacities, colours or a refrigerant flow animation without starting again.
Where these visuals work
- Consultant submittals and tender documents
- Product pages and distributor catalogues
- Trade show panels and booth screens
- Sales decks for new capacity ranges
Services behind this project.
One prepared model feeds every service below, so each further asset costs less than the first.
What a project like this costs.
Fixed prices, CAD preparation included, full commercial usage rights on payment. Complex machines are scoped individually. Full pricing
Questions.
Can you render HVAC and refrigeration equipment for tenders and submittals?
Yes. We render packaged units, compressor racks, condensing units, chillers and air handling units from your CAD, at the resolution a printed tender or large booth panel needs.
Can you show refrigerant or airflow inside the unit?
Yes. A cutaway or x-ray still shows the internal layout, and a feature animation can trace refrigerant or airflow through the system. Feature films start at $3,900.
Our CAD is very large. Is that a problem?
No. Large racks and skids arrive with thousands of parts. We simplify hidden internals and keep every visible surface exact, which is what makes the render trustworthy.
