Centrifugal pump, assembled and exploded.
An end-suction centrifugal pump with volute casing, impeller, mechanical seal, bearing frame and shaft. Pump buyers compare internals, not paint. Four assembled views sell the product, and four exploded views explain it.
- Equipment
- End-suction centrifugal pump
- Sector
- Pumps and fluid handling
- Built from
- Engineering CAD assembly
- Delivered
- 8 stills, 4:3
- Views
- 4 assembled, 4 exploded
- Used for
- Catalogue, manual, spare parts
The render set.
8 stills from one prepared model, delivered at print resolution. Select any image to view it full size.
What the visuals had to do.

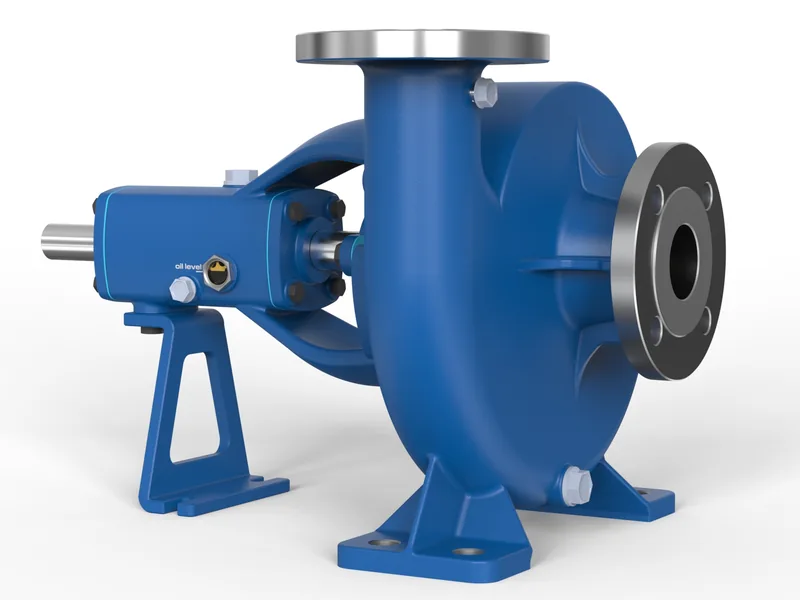

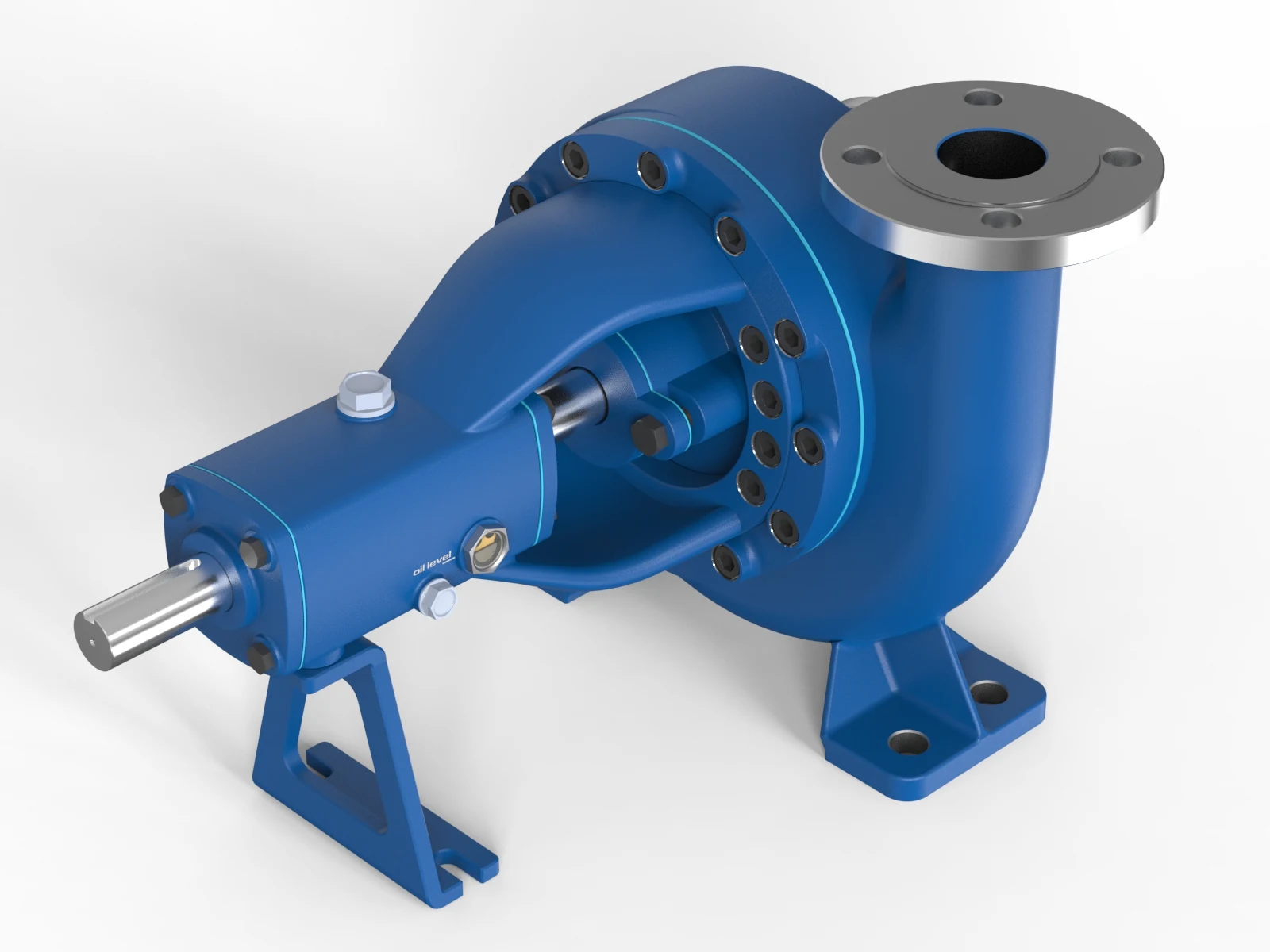

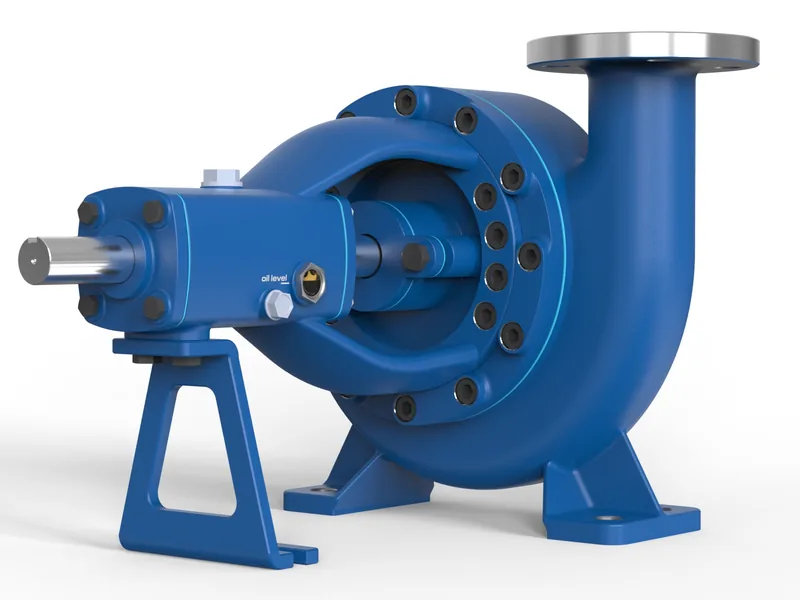

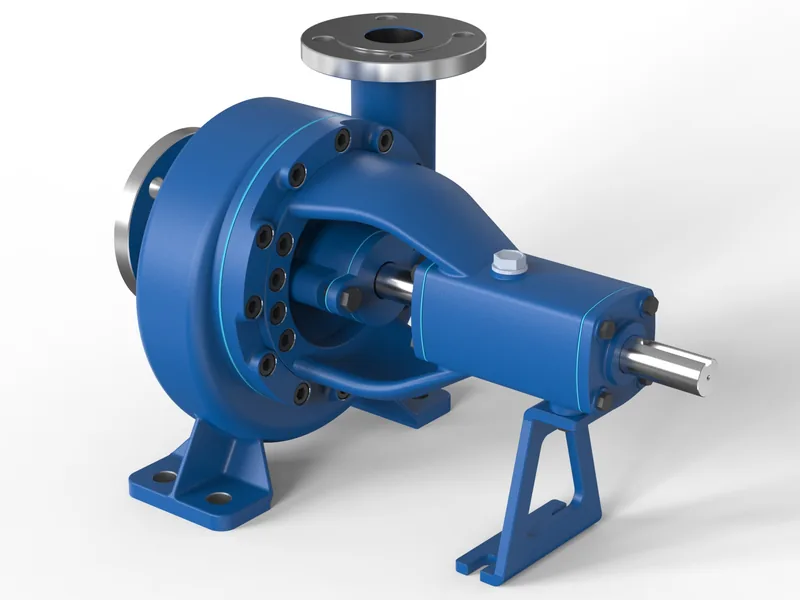

- Sell the productClean assembled views for catalogues, distributor portals and the website.

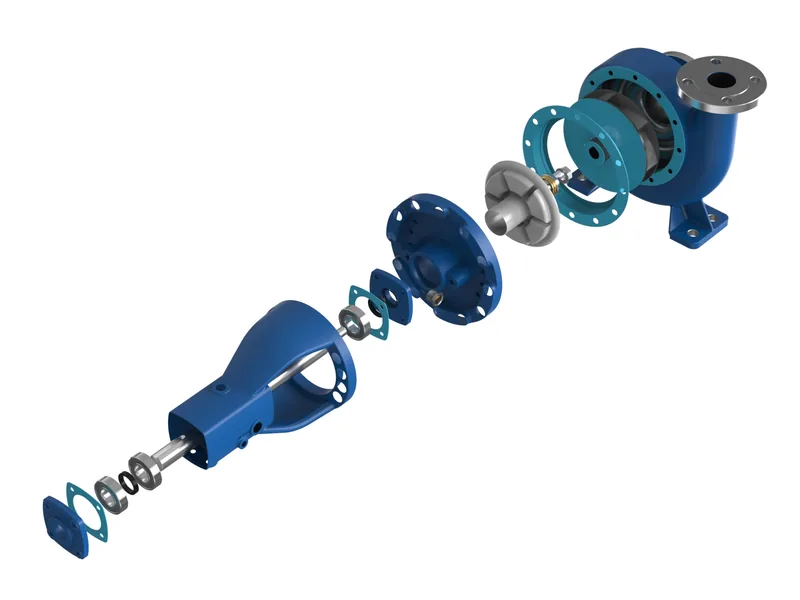

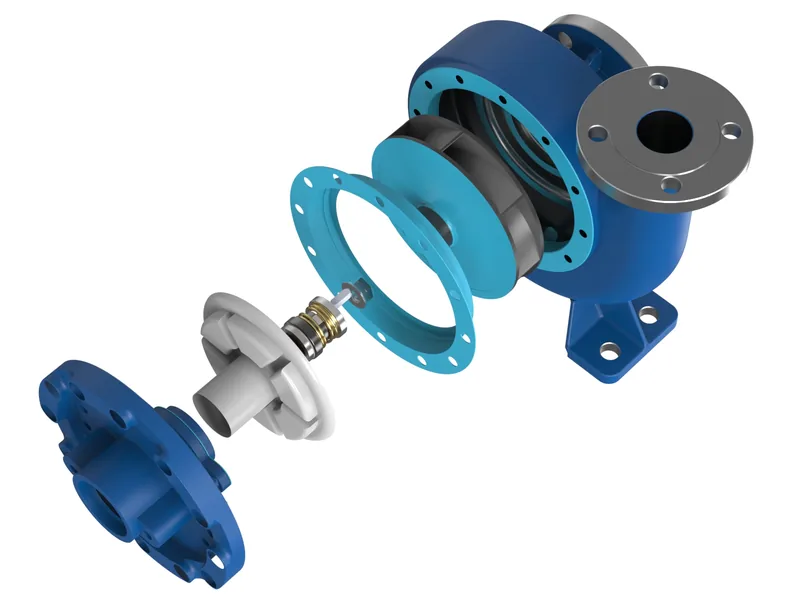

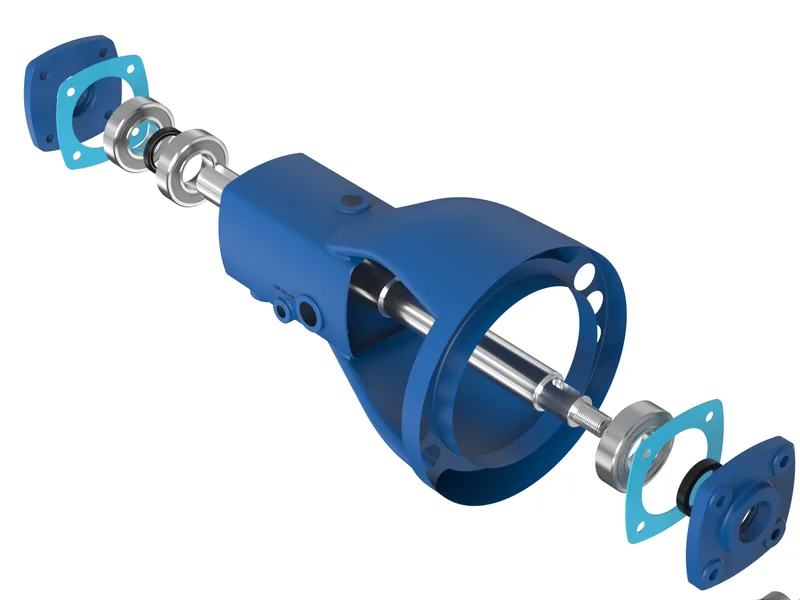

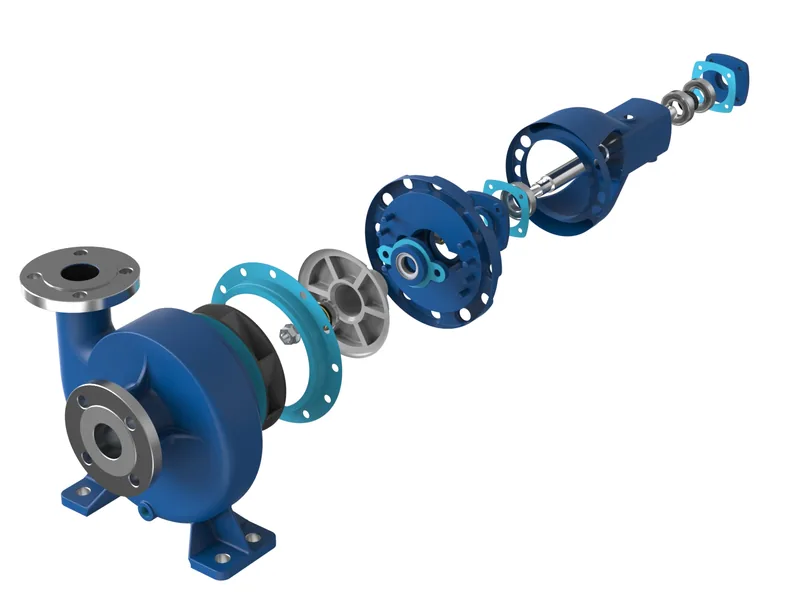

- Explain the internalsExploded views that show impeller, seal, gasket and bearing arrangement in the correct order along the shaft.
- Serve service teamsViews accurate enough for manuals and spare parts pages, from the same prepared model.
How we built it.
Exploded views only work when the part order is correct. We sequenced the explode along the shaft axis from the engineering assembly, so every part sits where a service engineer would expect it.
Cast and painted surfaces, machined flanges, gasket materials and polished shafts were each given their own material, so the difference between cast, machined and sealing faces is visible.
The same explode is ready to animate: an assembly or service film that shows the pump coming apart and going back together.
Where these visuals work
- Pump catalogues and datasheets
- Installation and service manuals
- Spare parts pages and e-commerce
- Distributor training
Services behind this project.
One prepared model feeds every service below, so each further asset costs less than the first.
What a project like this costs.
Fixed prices, CAD preparation included, full commercial usage rights on payment. Complex machines are scoped individually. Full pricing
Questions.
How much does an exploded view of a pump cost?
An exploded view set of three views of one assembly is $1,390, with CAD preparation included. A single assembled product render is $590.
Can you animate the pump coming apart for service training?
Yes. An assembly or service film shows the disassembly sequence step by step. These start at $6,400.
Can you do a whole pump range?
Yes. Once one pump is prepared, sizes and variants share materials and lighting, so catalogue batches start at $340 per SKU.
