Filtration

Pleated filter cartridge, down to every pleat.

A pleated filter cartridge with moulded end caps, an inner support core and hundreds of media pleats. Photography struggles with repetitive fine detail. In 3D every pleat is geometry, so the macro views stay crisp at any size.

Quote a project like this View all 5 renders

Equipment: Pleated filter cartridge
Sector: Filtration
Built from: Product CAD
Delivered: 5 stills, 4:3
Views: Hero, top, macro, exploded
Used for: Packaging, catalogue, web

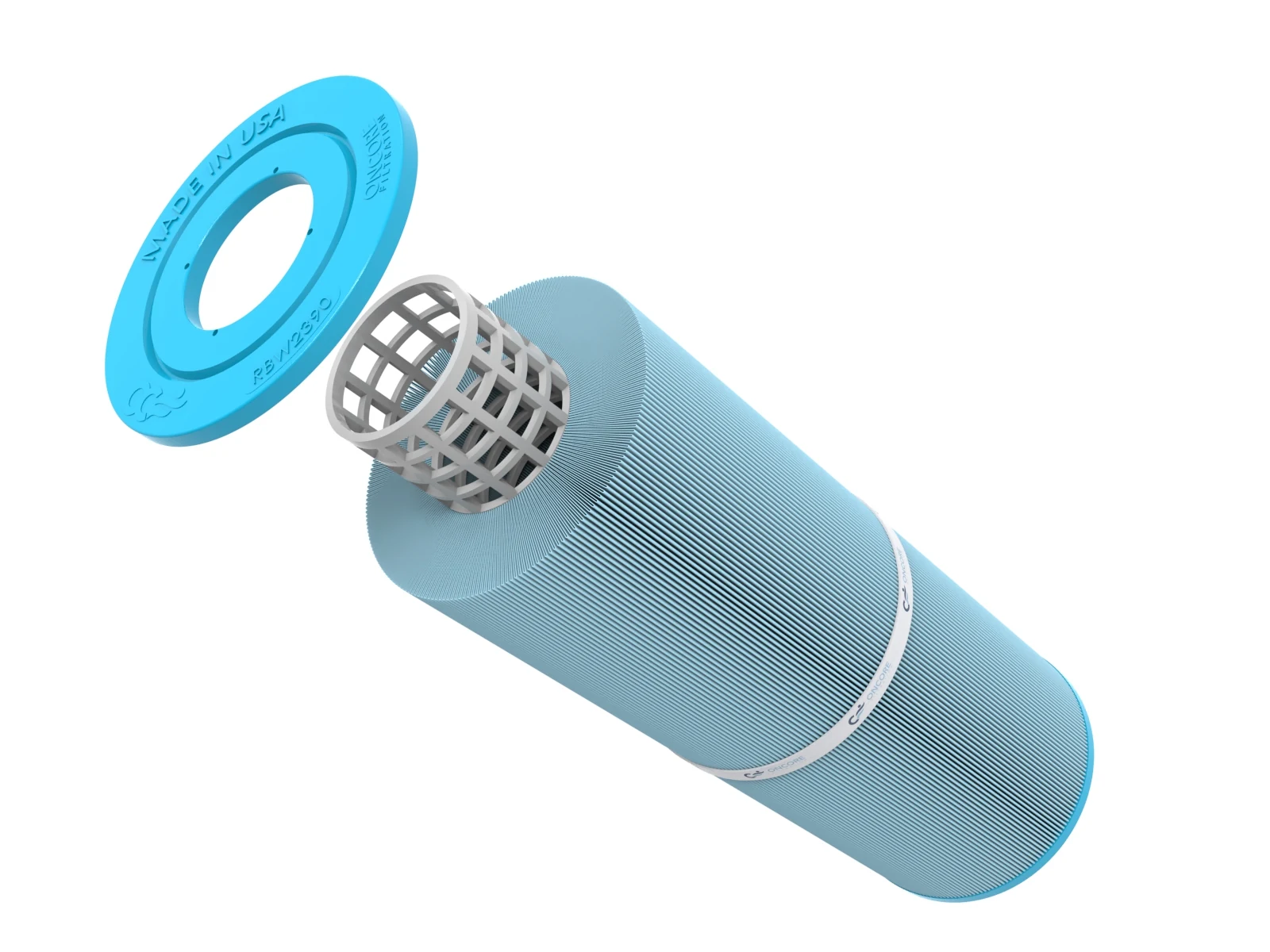

Pleated filter cartridge 3D rendering, Exploded view with end cap and inner core — Exploded view with end cap and inner core

The render set.

5 stills from one prepared model, delivered at print resolution. Select any image to view it full size.

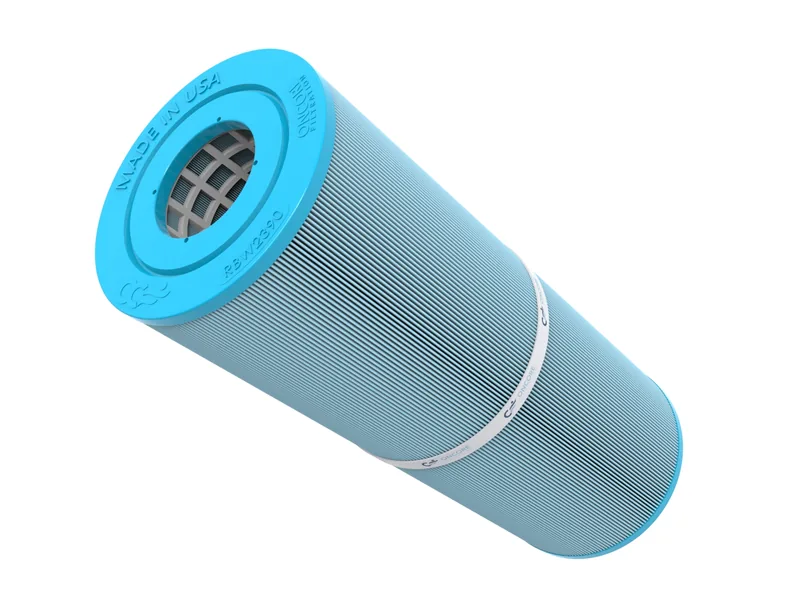

Pleated filter cartridge 3D rendering, Assembled cartridge, three-quarter view — Assembled cartridge, three-quarter view

Pleated filter cartridge 3D rendering, Top view into the core — Top view into the core

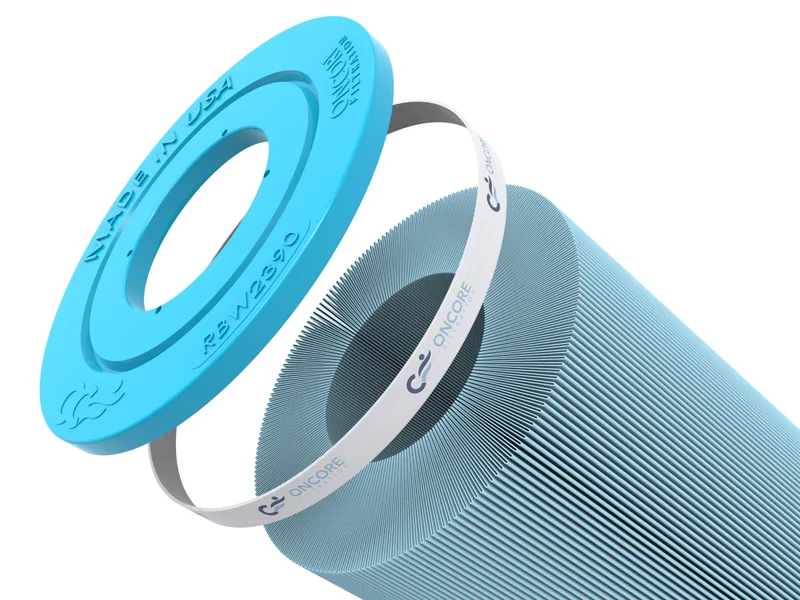

Pleated filter cartridge 3D rendering, End cap and retaining band exploded — End cap and retaining band exploded

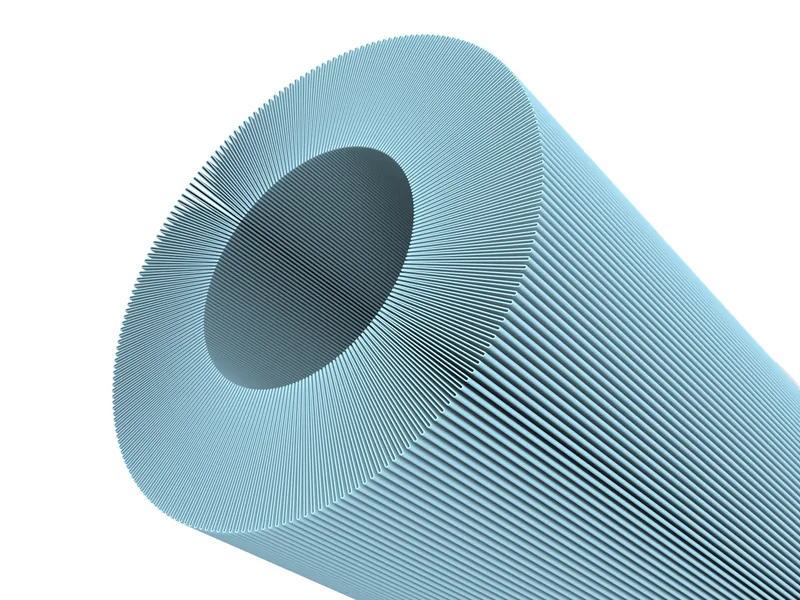

Pleated filter cartridge 3D rendering, Macro of the pleated media — Macro of the pleated media

What the visuals had to do.

Show the mediaPleat count and depth are what a filtration buyer compares. The macro view makes them visible.
Show the constructionAn exploded view explains end caps, core and band without a cutaway drawing.
Packaging-readyClean white-background views for boxes, labels and marketplace listings.

How we built it.

The pleat pack was built as true geometry rather than a texture, so the macro views hold up at print resolution.

Moulded plastic, fabric-like media and the printed band each got their own material, with soft light that keeps the blue caps saturated without blowing out.

The exploded view follows the real assembly order, and the same scene can animate the parts coming together for a product video.

Where these visuals work

Retail packaging and labels
E-commerce product pages
Distributor catalogues
Replacement part finders

Services behind this project.

One prepared model feeds every service below, so each further asset costs less than the first.

Equipment and component renderingStudio renders of components, spares and product ranges.Exploded views and illustrationExploded, sectioned and x-ray views for catalogues and manuals.Feature highlight animationShort films on the one mechanism that sells the machine.

What a project like this costs.

Fixed prices, CAD preparation included, full commercial usage rights on payment. Complex machines are scoped individually. Full pricing

Questions.

Can you render fine repeating detail like filter pleats or mesh?

Yes. We build it as real geometry, so macro views stay sharp. That is where 3D beats photography.

Can you render every size in the range?

Yes. Sizes and variants reuse the prepared model and scene, from $340 per SKU in batches of ten or more.
